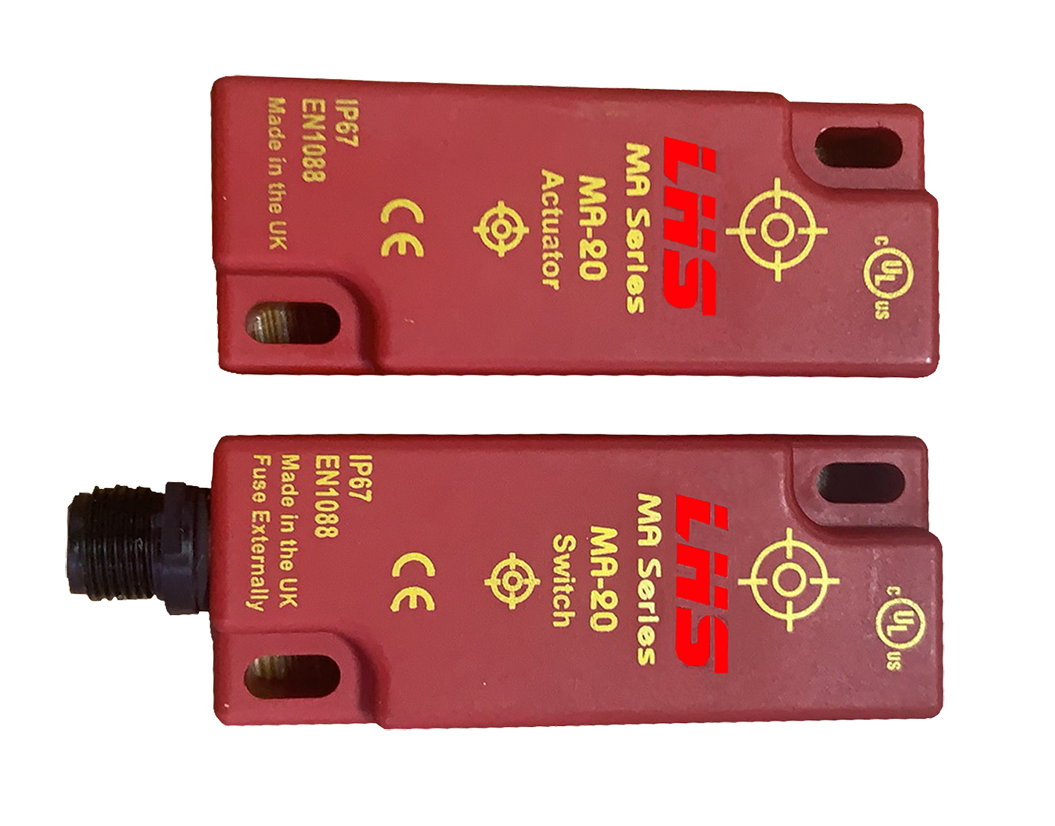

SCR magnetic induction safety switch

Coded Non Contact Switches

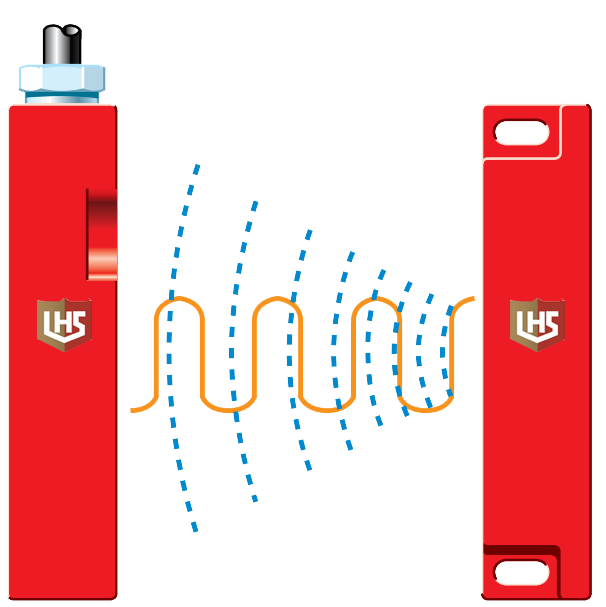

Coded non-contact safety switch/magnetic induction switch
With high anti-interference ability, the highest safety level certification
Meet the requirements of category 3 standards (EN 954-1)
IP67, IP69K protection level, high waterproof performance, can withstand high pressure steam cleaning
Service life up to 1 million times

Type selection

Product technical description

Magnetic induction switch
Specified as 80 degrees Celsius, but the design working temperature is up to 100 degrees Celsius
Easy to install in narrow frame structure

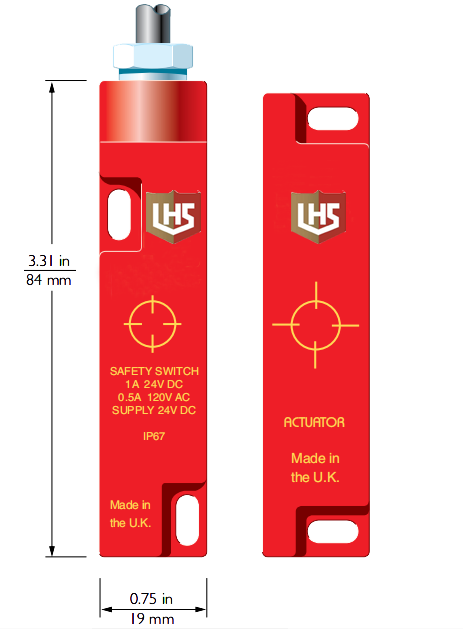

Width 12 mm, can sense height deviation tolerance
Heavy-duty 230Vac/24Vdc 2A or medium 1A
When used in conjunction with dual-channel safety relays, coded non-contact switches can be used to provide up to
Class 4 and Ple to ISO13849-1 protection.

Packaging industry

Food industry

machine tool

robot

Pharmaceutical Industry

Other manufacturing industries

SCR selection specifications

standard:	ISO14119 EN60947-5-1EN60204-1 ISO13849-1 EN62061 UL508
Mechanical reliability: B10d	3.3 x 106 running ISO13849-1 under 100mA load, according to system architecture, up to Ple EN62061 to SIL3 depends on the system architecture
Safety data	8 times per year / 24 hours a day / 365 days Full HD 2.52 x 10-8
MTTFD	(Life) 47 years MTTFD470 years
Safe channel 1 NC	250Vac 2.0A maximum rating
Safe channel 2 NC	250Vac 2.0A maximum rating
Safe channel 3 NC	Maximum rating 24Vdc 0.2A
Contact release time	<2ms
Minimum switching current	10Vdc 1mA
Main material	Certified polyester
Operating temperature	-25C+80C
Enclosure rating	IP69K（NEMA PW12）IP67（NEMA 6）
Impact resistance	IEC68-2-27 11ms 30g
Vibration resistance	IEC68-2-6 10-55Hz 1mm
Cable type	PVC 6 core 6mm OD conductor 0.25mm2

Safety circuit module

Universal safety circuit building module
It is a configurable safety control module that supports multiple switch-type safety element inputs
Optional 3 groups-6 groups of safety element input
Configuration software can be used to set the safety control logic to meet the needs of a variety of field applications.

product name	model	Safe input3CH	Output	Order number
Safety Relays	SR103 series	1 set of security products	3N/O+1N/C	See product information for details
Safety Relays	SR301 series	3 set of security products	2N/O
Safety Relays	SM601 series	6 groups of safety products	2N/O+4Tr
